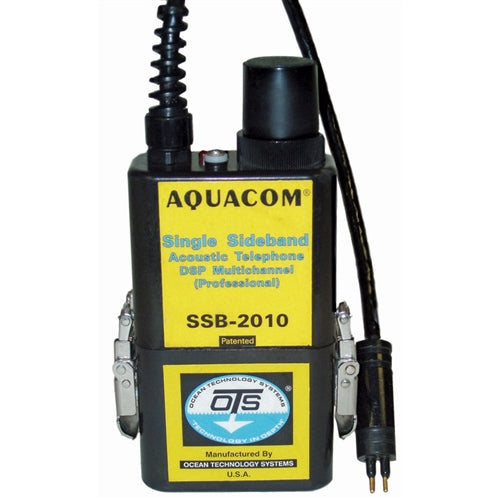

OTS Aquacom SSB-2010 Transceiver (DiverUnit)
900272-000
Aquacom SSB-2010, 4-channel transceiver (5 Watts Output Power)
Model: SSB-2010, Aquacom SSB 4-channel, voice menu, diver transceiver.
Can be used w/CDK-6.
The Aquacom® SSB-2010 transceiver is a 5 watt, multichannel single sideband underwater telephone designed with Professional Search & Rescue Teams in mind. The Aquacom® SSB-2010 can be configured to operate with virtually any style full face mask (FFM) or mouth mask. With the addition of a CDK-6 Surface Accessory Kit, the Aquacom® SSB-2010 is easily converted into a portable surface station.
Standard features are: Voice Operated Transmitter (VOX), Push-to-talk control (PTT), Squelch, 4 channels, Earphone volumes, Voice menu (the user can adjust the SSB-2010 underwater via the voice menu), removable transducer, and heavy duty design.
This affordable system is tough, powerful, and a must for any serious Search & Rescue Team!
Item# 900272-000
Public Safety Divers, Military, and Law Enforcement please contact us directly for Public Safety Pricing.
Technical Specs- Nominal Range: Calm sea: Greater than 1,000 meters. Sea State 6: 100 meters nominal.
- Transmitter Band: 31 to 33 kHz.
- Audio Frequency Response: 300-4,000 Hz
- Receiver Sensitivity: -110 dBv
- Acoustic Output Power: 3 watt (174.2 dB re 1 uPA at one meter.
- Auto. Gain Control (AGC): 120 dB dynamic range
- Transducer: Piezoelectric type (cable length: 35').
- Transmitter Activation: Voice operated transmitter (VOX) or manual activation (PTT).
- Battery Type: 8-AA Alkaline cells or opt. RB-10A Nickel Cad. pack.or NiMH.
- Battery Life: 12 hrs. on AA Alkaline, 10% duty cycle, 6 hrs. Nicad, 13 hrs. Metal Hydride
- Low Battery Indicator: Red LED on upper housing (also indicates power is ON).
- Housing Dimensions: Height: 7.60", Width: 3.55, Depth: l.80"
- Channels 1 = 32.768 kHz upper sideband 2 = 32,768 kHz Lower sideband 3 = 31.250 kHz upper sideband 4 = 31.250 kHz lower sideband
